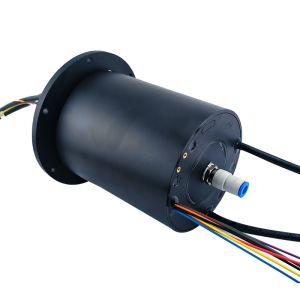

pneumatic and signal combination slip ring Product Overview
This is a combined slip ring with 1 pneumatic channel, 8 electrical
channels, and 16 signal channels. It integrates one pneumatic
channel, eight 10A high-current channels, and 16 shielded signal
channels. The product features a robust aluminum alloy housing with
an IP51 protection rating, a design speed of 10RPM, and is suitable
for 220V operating voltage environments.
pneumatic and signal combination slip ring Key Features
Three-in-one high-efficiency integration: A single device
simultaneously transmits pneumatic, electrical, and signal signals,
significantly simplifying the rotary end system structure, reducing
external wiring, and improving equipment reliability.
Powerful load and signal capabilities: Provides 8 high-current
channels of 10A to drive various actuators; equipped with 16
shielded signal channels to ensure interference-free transmission
of sensitive control signals.
Compact and robust structural design: Utilizes an aluminum alloy
housing, combining excellent mechanical strength and heat
dissipation performance; IP51 protection rating effectively resists
dust intrusion and vertical water droplets.
Designed for precision control: Optimized speed of 10RPM and
support for 220V operating voltage make it outstanding in
automation applications requiring low speed, high torque, and
precise control.
pneumatic and signal combination slip ring Technical Parameters
| Electrical Parameters | Gas Parameters |
|---|
| Dielectric strength | 500VCA@50Hz,60s | Number of trachea | 1 in 1 out |
| Insulation resistance | ≥500MΩ/500VDC | Pressure | -99KPa-1MPa or vacuum |
| Dynamic resistance change value | ＜10mΩ | Rotational torque | <0.3N.m |
| Rated voltage | 0～220VDC/VAC | Rotation speed | 10rpm |
| Wire Specifications | Teflon wire (current-dependent) | Shell material | Aluminum Alloy |
| Wire length | Default 300mm (Customizable) | Temperature | -30℃～+80℃ |
| Contact material | Precious metal contacts | Operating humidity | 0～85%RH |
| Protection level | IP51 |
|
|
pneumatic and signal combination slip ring Technical Drawings
pneumatic and signal combination slip ring Application Scenarios
Automated welding and machining equipment: Provides synchronous
power, control signals, and pneumatic clamping power to rotary
tables.
Robot end effectors: Drive and control complex rotary fixtures or
tools.
Packaging and filling machinery: Achieves synchronization of
electrical and pneumatic actions at rotary workstations.
Precision testing and measurement turntables: Transmit sensor
power, data signals, and necessary cleaning air paths.
pneumatic and signal combination slip ring Frequently Asked
Questions
Q1: What is the maximum air pressure that the air passage can
support?
A: For specific pressure ratings, sealing materials, and interface
types of the air passage, please refer to the detailed product
specification sheet or contact our technical support. We will
provide accurate parameters based on your specific operating
conditions.
Q2: Does the 16-channel signal support high-speed communication
protocols such as Ethernet or USB?
A: The signal channels of this product are designed specifically
for control signals (such as I/O, analog signals, RS485, etc.). For
high-speed data protocols, special design and verification are
required. Please inform our engineers of your specific needs in
advance when selecting a model.
Q3: Can the 10RPM speed be adjusted according to the application?
A: 10RPM is the optimized standard design speed for this product.
If you have specific speed requirements, we can provide customized
solutions to meet the performance needs of different application
scenarios.
